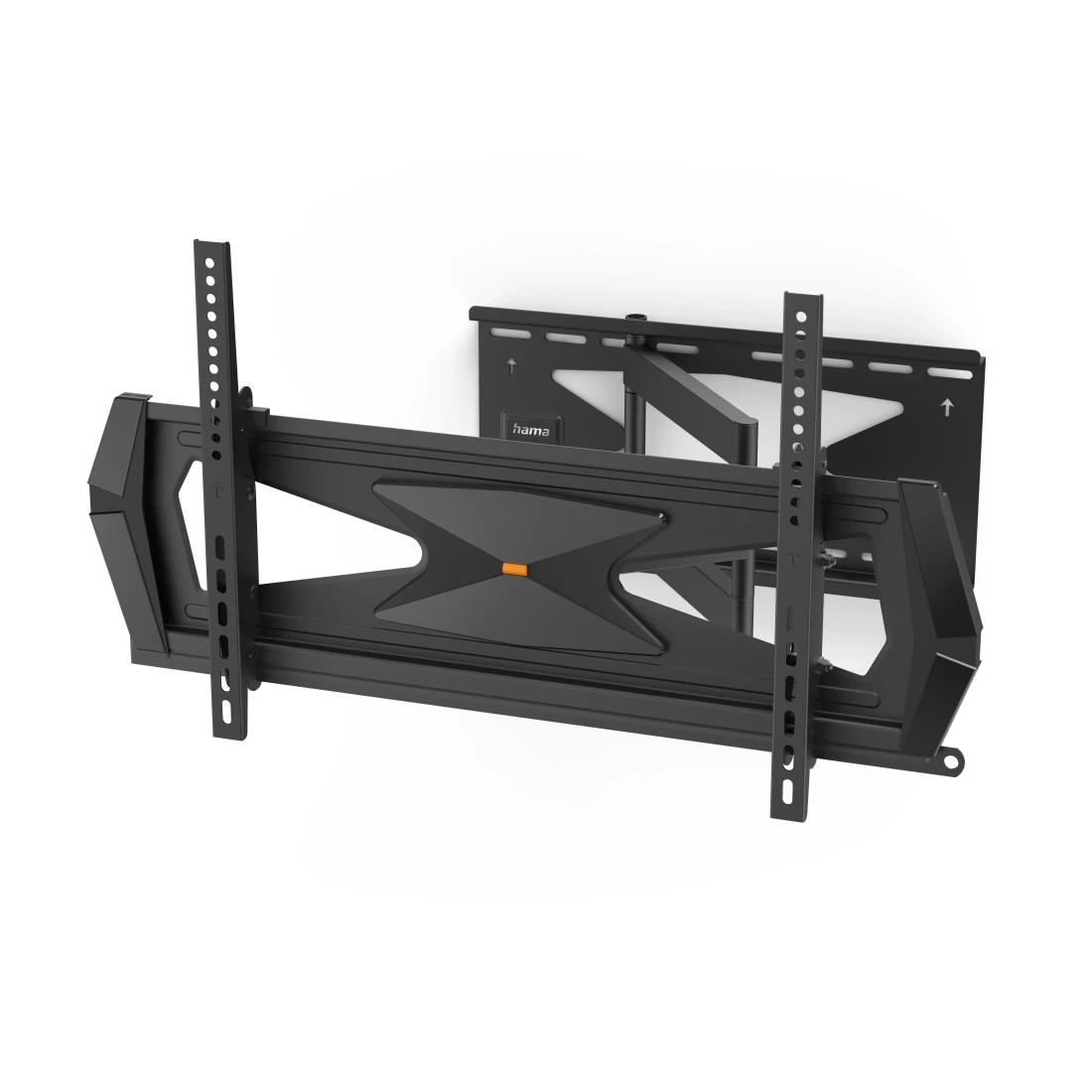

Hama TV Wall Bracket, Swivel, Tilt, Theft Protection, 203 cm (80"), 40 kg

Technical details

• Technical Specs

  Design (Colour, Pattern, Motif, Series)

  Colour	Black
  Shade of colour	Black

  Quality

  Quality

  Professional

  Physical Properties

  Hole Size Attachment	Up to M8
  Material	Steel
  Maximum Load Capacity	40 kg
  Maximum swivel range	180 °
  Model	TV
  number of joints	3
  Projection maximum	55.1 cm
  Projection minimum	8.1 cm
  Rotation	8 °
  Tilt +/-	5 / 10 °

  Size & Weight

  External Dimension (Height)	44 cm
  External Dimension (Width)	78,51 cm
  Mounting Plate (Length)	24.6 cm
  Mounting Plate (Width)	48.5 cm
  Screen Dimensions	94 cm (37"), 97 cm (38"), 99 cm (39"), 102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 145 cm (57"), 147 cm (58"), 152 cm (60"), 155 cm (61"), 161 cm (63"), 163 cm (64"), 165 cm (65"), 178 cm (70"), 180 cm (71"), 191 cm (75"), 195 cm (77"), 198 cm (78"), 200 cm (79"), 203 cm (80")
  VESA (from-to)	300x200 – 600x400
  VESA Standard	300 x 200, 300 x 300, 300 x 400, 400 x 200, 400 x 300, 400 x 400, 600 x 400

  Field of Application

  Field of Application	Public
  Recommended Maximum Screen Size	203 cm (80")
  Recommended Minimum Screen Size	94 cm (37")
  Recommended Screen Size	94 - 203 cm (37" - 80")
  Suitable for	TV
  Version	Swivelling/Tilting

• More product information
  • Full flexibility in hotels, meetings and at trade fairs: whether it be a hotel bed or a counter, with this fully mobile wall bracket, you'll always be in the front row. Ideal for flat-screen TVs with a screen diagonal of 94 to 203 cm (37" to 80")
  • Tested according to the criteria of a recognised testing body for use in public places, such as in hotels, conference rooms, restaurants or bars
  • TV wall bracket especially suited for flat-screen televisions, allows optimal positioning of the flat-screen TV in any room, ideal for open-plan living rooms
  • By removing the padlock and metal cover, the holder becomes accessible again and the TV can be removed
  • Up to -5/+10° continuous tilt
  • Swivel range on 3 hinges: up to 180°
  • Supports all VESA standards up to 600 x 400
  • With small spirit level for easy and quick installation
  • Design developed in Germany
• What's in the Box
  • 1 TV wall bracket
  • Installation materials incl. Fischer plugs
  • 1 spirit level
  • 1 installation instructions
• Note for Consumers

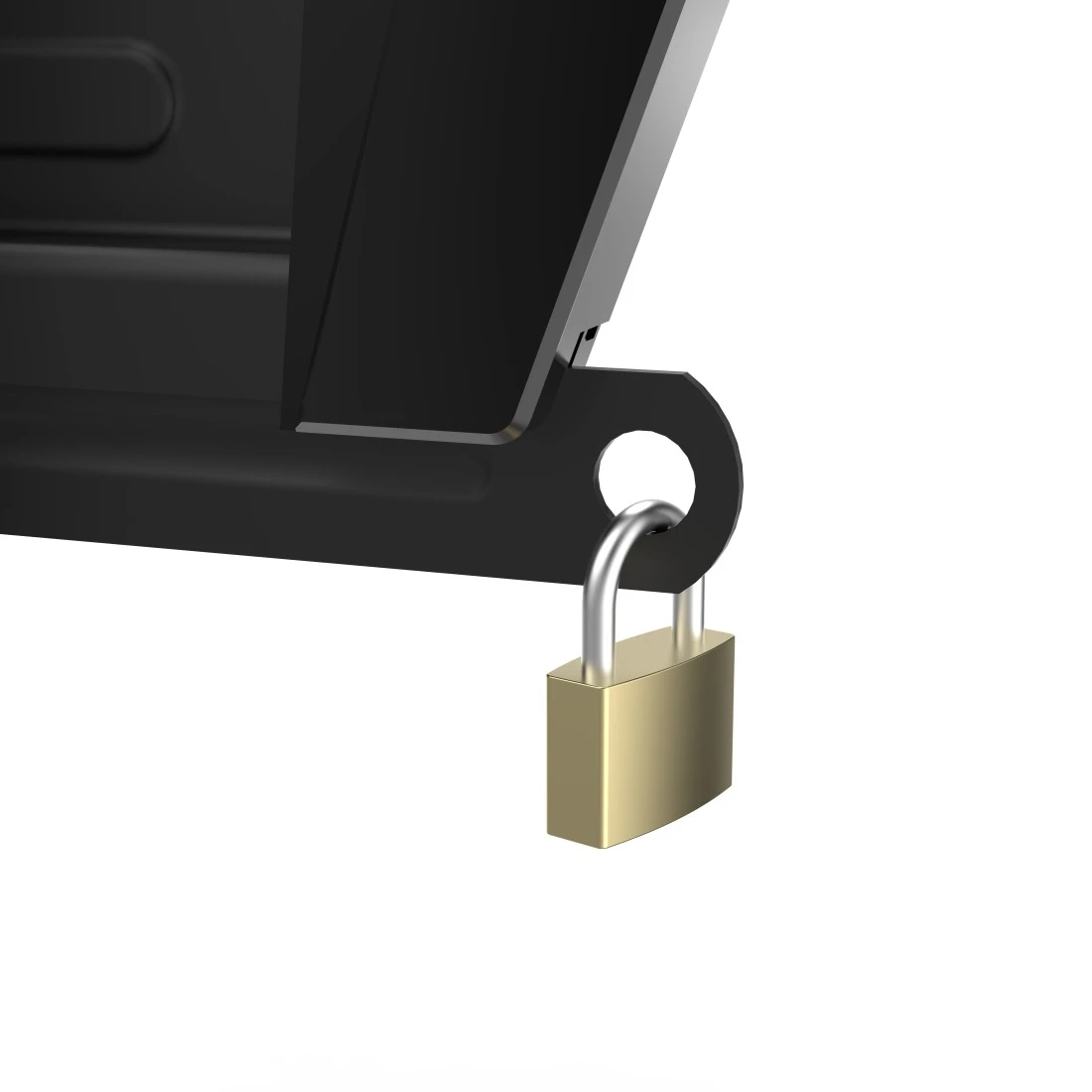

  Padlock not included in the extent of delivery.
  Please note that the padlock's shackle diameter must be 4 mm or less.
  The bracket can only be unlocked and the TV removed if no padlock is attached.

  In addition to the various installation accessories delivered in the package, we also recommend the following tools: drill, pencil, screwdriver, power screwdriver, measuring tape, spirit level.

  To be able to use the full range of motion, route the cable to the fully extended TV wall bracket and ensure that there is sufficient room for the cable to move.
