00176575
Hama "Mini" WLAN Socket, with Electricity Consumption Meter, for Voice / App Control
Solutions & tips
Help & Guides
Downloads
| Name | Operating System | required Version | Download |
|---|---|---|---|
| Hama Home | iOS | 8.0 or higher |
|
| Hama Home | Android | 4.1 or higher |
|
Technical details
Technical Specs
| Design (Colour, Pattern, Motif, Series) | Colour | White |
| Shade of colour | White |
| Connectivity (Connection) | Connection | Socket with Earth Contact |
| Power connector plug type | Type E (CEE 7/5) | |
| Signal Transmission | WiFi |
| Electrospecific Properties | Frequency | 2400 MHz |
| Physical Properties | Additional Functions | Consumption meter |
| Ambient Temperature during Operation | ca. 0°C to ca. +35°C | |
| Can be Dimmed | No | |
| IP protection class | IP20 (Dry Rooms) | |
| Maximum Load | 3680 W | |
| Number of Radio Sockets | 1 | |
| Special Feature | With increased Contact Protection | |
| Voice Assistant | Amazon Alexa (AVS)/Apple Siri (Shortcuts)/Google Home |
| Size & Weight | Depth | 5.2 cm |
| Height | 8.7 cm | |
| Width | 5.2 cm |
| Energy | Standby Consumption ≤ | 1 W |
| Field of Application | App Control | Hama Home |
| Recommended Use | Home Assistent |
System Requirements
- Operating system: Android 8.1/iOS 16.1 or later
Note for Consumers
The measuring range of the WLAN socket is between 2 - 3680 Watts, so it is only suitable for measuring the power consumption of devices in operation.

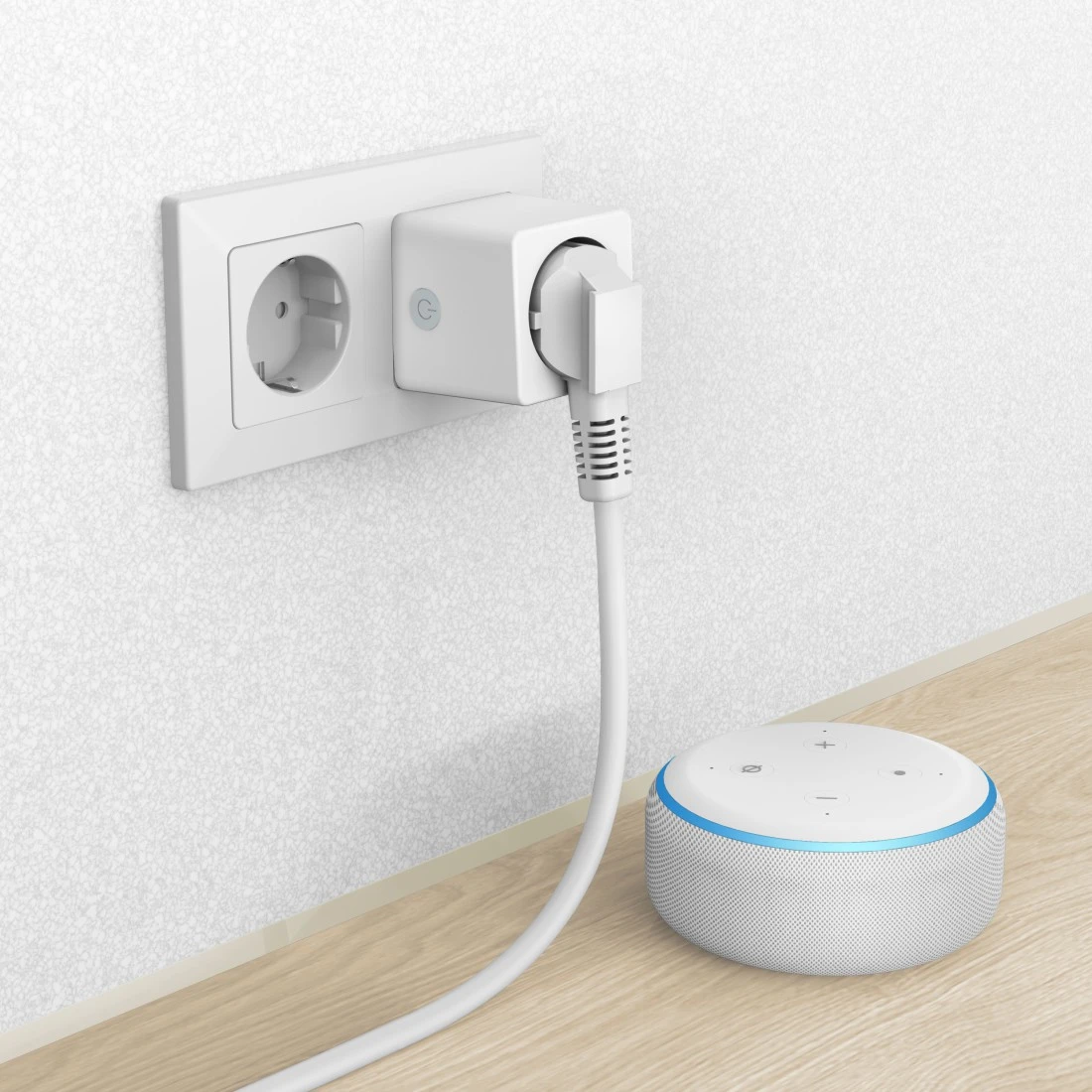

Amazon Alexa:
the required Alexa skill "Hama Home" must be activated in the Alexa app for this. The user account for the Hama Home app is then connected to Alexa.
This allows the devices to be controlled via voice control (switching on/off).

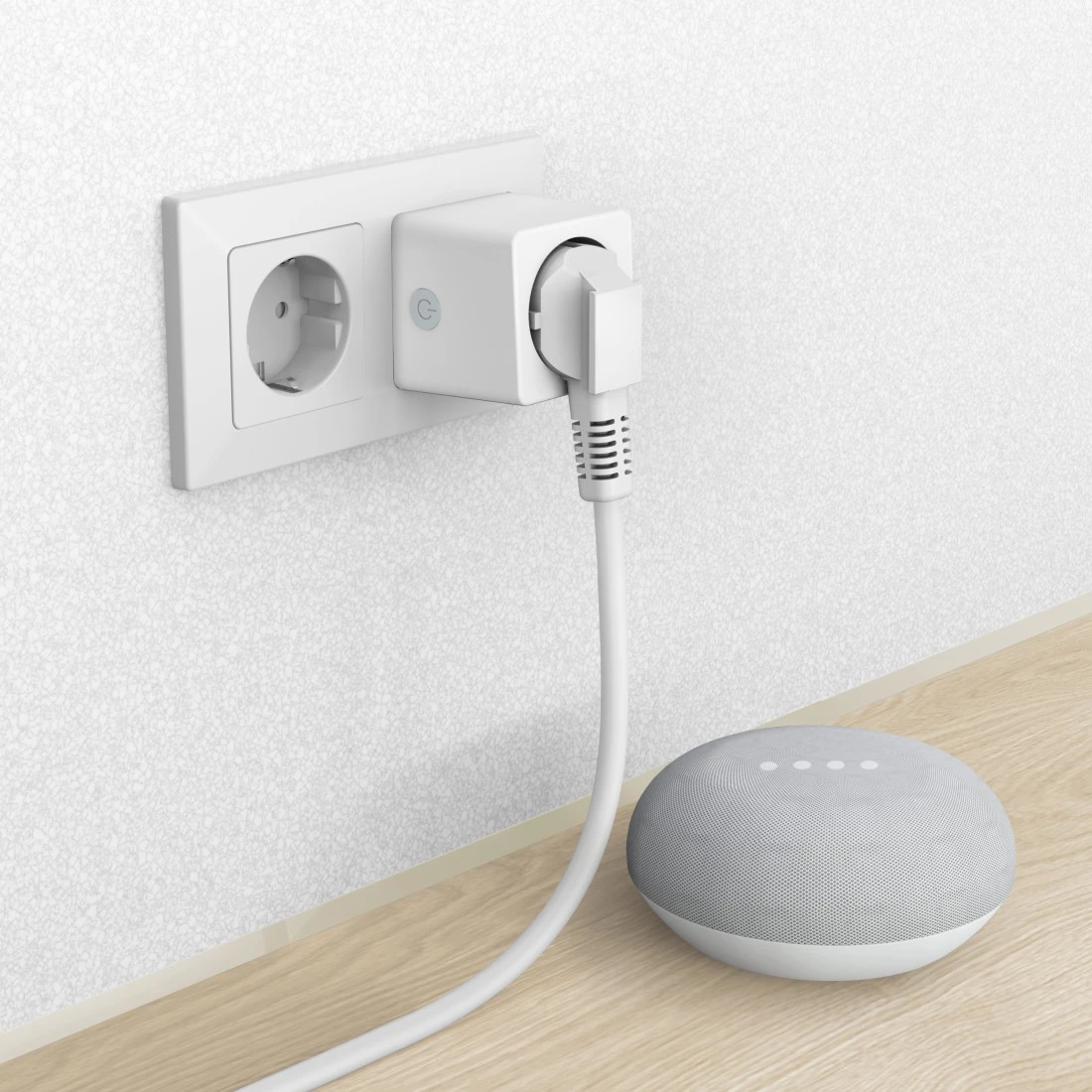

Google Assistant:
the "Hama Home" service must be activated in the Google Home app for this. The user account for the Hama Home app is then connected to Google.
This allows the devices to be controlled via voice control (switching on/off).
